plDragDropHandler Class Reference

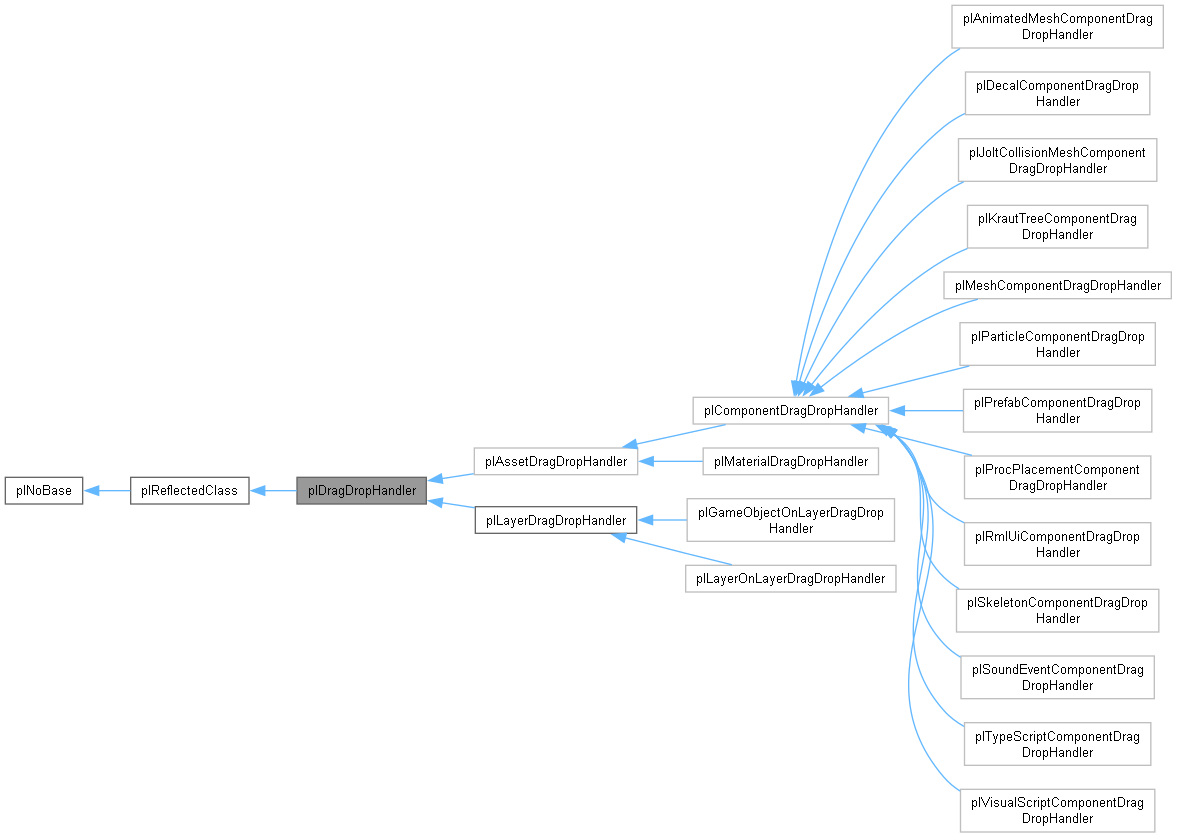

Inheritance diagram for plDragDropHandler:

Static Public Member Functions
static bool	IsHandlerActive ()
	Returns whether the last call to BeginDragDropOperation() was successful and a handler is now in effect.
static bool	BeginDragDropOperation (const plDragDropInfo *pInfo, plDragDropConfig *pConfigToFillOut=nullptr)
	Call this when a drag enter event occurs. Return value indicates whether a plDragDropHandler was found to handle the operation. If not, subsequent drag & drop updates are ignored.
static void	UpdateDragDropOperation (const plDragDropInfo *pInfo)
	Call this when a drag event occurs. Ignored if BeginDragDropOperation() was not successful.
static void	FinishDragDrop (const plDragDropInfo *pInfo)
	Call this when a drop event occurs. Ignored if BeginDragDropOperation() was not successful.
static void	CancelDragDrop ()
	Call this when a drag leave event occurs. Ignored if BeginDragDropOperation() was not successful.
static bool	CanDropOnly (const plDragDropInfo *pInfo)
	For targets that do not support full dragging, but only dropping on a single target, this allows to query whether there is a handler for the given target. See also DropOnly().
static bool	DropOnly (const plDragDropInfo *pInfo)
	Executes a complete drop action on a target that does not support continuous dragging. See also CanDropOnly().
Static Public Member Functions inherited from plNoBase
static const plRTTI *	GetStaticRTTI ()

Protected Member Functions
virtual float	CanHandle (const plDragDropInfo *pInfo) const =0
	Used to ask a handler whether it knows how to handle a certain drag & drop situation.
virtual void	RequestConfiguration (plDragDropConfig *pConfigToFillOut)
	Potentially called by the drag drop target to request information about how to determine the plDragDropInfo data.
virtual void	OnDragBegin (const plDragDropInfo *pInfo)=0
	Called shortly after CanHandle returned true to begin handling a drag operation.
virtual void	OnDragUpdate (const plDragDropInfo *pInfo)=0
	Called to update the drag operation with the latest state.
virtual void	OnDragCancel ()=0
	Called when the drag operation leaves the designated area. The handler will be destroyed after this. It should clean up all temporary objects that it created before.
virtual void	OnDrop (const plDragDropInfo *pInfo)=0
	Final call to finish the drag & drop operation. Handler is destroyed after this.

Additional Inherited Members
Public Member Functions inherited from plReflectedClass
virtual const plRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const plRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
PL_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Member Function Documentation

CanHandle()

virtual float plDragDropHandler::CanHandle ( const plDragDropInfo * pInfo ) const

protectedpure virtual

Used to ask a handler whether it knows how to handle a certain drag & drop situation.

The return value is a priority. By default CanHandle should return 0 or 1. To override an existing handler, values larger than 1 may be returned to take precedence.

Implemented in plAnimatedMeshComponentDragDropHandler, plComponentDragDropHandler, plDecalComponentDragDropHandler, plGameObjectOnLayerDragDropHandler, plJoltCollisionMeshComponentDragDropHandler, plKrautTreeComponentDragDropHandler, plLayerOnLayerDragDropHandler, plMaterialDragDropHandler, plMeshComponentDragDropHandler, plParticleComponentDragDropHandler, plPrefabComponentDragDropHandler, plProcPlacementComponentDragDropHandler, plRmlUiComponentDragDropHandler, plSkeletonComponentDragDropHandler, plSoundEventComponentDragDropHandler, plTypeScriptComponentDragDropHandler, and plVisualScriptComponentDragDropHandler.

OnDragBegin()

virtual void plDragDropHandler::OnDragBegin ( const plDragDropInfo * pInfo )

protectedpure virtual

Called shortly after CanHandle returned true to begin handling a drag operation.

Implemented in plAnimatedMeshComponentDragDropHandler, plComponentDragDropHandler, plDecalComponentDragDropHandler, plJoltCollisionMeshComponentDragDropHandler, plKrautTreeComponentDragDropHandler, plLayerDragDropHandler, plMaterialDragDropHandler, plMeshComponentDragDropHandler, plParticleComponentDragDropHandler, plPrefabComponentDragDropHandler, plProcPlacementComponentDragDropHandler, plRmlUiComponentDragDropHandler, plSkeletonComponentDragDropHandler, plSoundEventComponentDragDropHandler, plTypeScriptComponentDragDropHandler, and plVisualScriptComponentDragDropHandler.

OnDragCancel()

virtual void plDragDropHandler::OnDragCancel ( )

protectedpure virtual

Called when the drag operation leaves the designated area. The handler will be destroyed after this. It should clean up all temporary objects that it created before.

Implemented in plComponentDragDropHandler, plLayerDragDropHandler, and plMaterialDragDropHandler.

OnDragUpdate()

virtual void plDragDropHandler::OnDragUpdate ( const plDragDropInfo * pInfo )

protectedpure virtual

Called to update the drag operation with the latest state.

Implemented in plComponentDragDropHandler, plLayerDragDropHandler, plMaterialDragDropHandler, and plPrefabComponentDragDropHandler.

OnDrop()

virtual void plDragDropHandler::OnDrop ( const plDragDropInfo * pInfo )

protectedpure virtual

Final call to finish the drag & drop operation. Handler is destroyed after this.

Implemented in plComponentDragDropHandler, plGameObjectOnLayerDragDropHandler, plLayerOnLayerDragDropHandler, and plMaterialDragDropHandler.

RequestConfiguration()

virtual void plDragDropHandler::RequestConfiguration ( plDragDropConfig * pConfigToFillOut )

inlineprotectedvirtual

Potentially called by the drag drop target to request information about how to determine the plDragDropInfo data.

Reimplemented in plMaterialDragDropHandler.

---

The documentation for this class was generated from the following files:

• Code/Editor/EditorFramework/DragDrop/DragDropHandler.h
• Code/Editor/EditorFramework/DragDrop/Implementation/DragDropHandler.cpp
