Public Member Functions | Protected Member Functions | List of all members
plQtExposedParametersPropertyWidget Class Reference

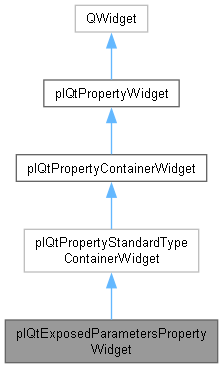

Inheritance diagram for plQtExposedParametersPropertyWidget:
Inheritance graph
[legend]

Public Member Functions

virtual void SetSelection (const plHybridArray< plPropertySelection, 8 > &items) override
 This is called whenever the selection in the editor changes and thus the widget may need to display a different value.

- Public Member Functions inherited from plQtPropertyStandardTypeContainerWidget
 plQtPropertyStandardTypeContainerWidget ()
 *** plQtPropertyStandardTypeContainerWidget ***

- Public Member Functions inherited from plQtPropertyContainerWidget
 plQtPropertyContainerWidget ()
 *** plQtPropertyContainerWidget ***

virtual bool HasLabel () const override
 If this returns true (default), a QLabel is created and the text that GetLabel() returns is displayed.

virtual void SetIsDefault (bool bIsDefault) override
 Whether the variable that the widget represents is currently set to the default value or has been modified.

- Public Member Functions inherited from plQtPropertyWidget
 plQtPropertyWidget ()
 *** BASE ***

void Init (plQtPropertyGridWidget *pGrid, plObjectAccessorBase *pObjectAccessor, const plRTTI *pType, const plAbstractProperty *pProp)

const plAbstractProperty * GetProperty () const

const plHybridArray< plPropertySelection, 8 > & GetSelection () const

virtual const char * GetLabel (plStringBuilder &ref_sTmp) const
 The return value is used to display a label, if HasLabel() returns true.

virtual void ExtendContextMenu (QMenu &ref_menu)

bool GetCommonVariantSubType (const plHybridArray< plPropertySelection, 8 > &items, const plAbstractProperty *pProperty, plVariantType::Enum &out_type)
 If the property is of type plVariant this function returns whether all items have the same type. If true is returned, out_Type contains the common type. Note that 'invalid' can be a common type.

plVariant GetCommonValue (const plHybridArray< plPropertySelection, 8 > &items, const plAbstractProperty *pProperty)

void PrepareToDie ()

virtual void SetReadOnly (bool bReadOnly=true)
 By default disables the widget, but can be overridden to make a widget more interactable (for example to be able to copy text from it).


Protected Member Functions

virtual void OnInit () override

virtual plQtPropertyWidget * CreateWidget (plUInt32 index) override

virtual void UpdateElement (plUInt32 index) override

virtual void UpdatePropertyMetaState () override

- Protected Member Functions inherited from plQtPropertyStandardTypeContainerWidget
virtual plQtGroupBoxBase * CreateElement (QWidget *pParent) override

virtual Element & AddElement (plUInt32 index) override

virtual void RemoveElement (plUInt32 index) override

- Protected Member Functions inherited from plQtPropertyContainerWidget
void UpdateElements ()

virtual plUInt32 GetRequiredElementCount () const

void Clear ()

void DeleteItems (plHybridArray< plPropertySelection, 8 > &items)

void MoveItems (plHybridArray< plPropertySelection, 8 > &items, plInt32 iMove)

virtual void DoPrepareToDie () override

virtual void dragEnterEvent (QDragEnterEvent *event) override

virtual void dragMoveEvent (QDragMoveEvent *event) override

virtual void dragLeaveEvent (QDragLeaveEvent *event) override

virtual void dropEvent (QDropEvent *event) override

virtual void paintEvent (QPaintEvent *event) override

virtual void showEvent (QShowEvent *event) override

- Protected Member Functions inherited from plQtPropertyWidget
void Broadcast (plPropertyEvent::Type type)

void PropertyChangedHandler (const plPropertyEvent &ed)

bool IsUndead () const

virtual bool eventFilter (QObject *pWatched, QEvent *pEvent) override


Additional Inherited Members

- Public Slots inherited from plQtPropertyContainerWidget
void OnElementButtonClicked ()

void OnDragStarted (QMimeData &ref_mimeData)

void OnContainerContextMenu (const QPoint &pt)

void OnCustomElementContextMenu (const QPoint &pt)

- Public Slots inherited from plQtPropertyWidget
void OnCustomContextMenu (const QPoint &pt)

- Static Public Member Functions inherited from plQtPropertyWidget
static const plRTTI * GetCommonBaseType (const plHybridArray< plPropertySelection, 8 > &items)

static QColor SetPaletteBackgroundColor (plColorGammaUB inputColor, QPalette &ref_palette)

- Protected Attributes inherited from plQtPropertyContainerWidget
QHBoxLayout * m_pLayout

plQtGroupBoxBase * m_pGroup

QVBoxLayout * m_pGroupLayout

plQtAddSubElementButton * m_pAddButton = nullptr

QPalette m_Pal

plHybridArray< plVariant, 16 > m_Keys

plDynamicArray< Element > m_Elements

plInt32 m_iDropSource = -1

plInt32 m_iDropTarget = -1

- Protected Attributes inherited from plQtPropertyWidget
plQtPropertyGridWidget * m_pGrid = nullptr

plObjectAccessorBase * m_pObjectAccessor = nullptr

const plRTTI * m_pType = nullptr

const plAbstractProperty * m_pProp = nullptr

plHybridArray< plPropertySelection, 8 > m_Items

bool m_bIsDefault
 Whether the variable that the widget represents is currently set to the default value or has been modified.


Member Function Documentation

◆ CreateWidget()

plQtPropertyWidget * plQtExposedParametersPropertyWidget::CreateWidget ( plUInt32 index)
overrideprotectedvirtual

Reimplemented from plQtPropertyStandardTypeContainerWidget.

◆ OnInit()

void plQtExposedParametersPropertyWidget::OnInit ( )
overrideprotectedvirtual

Reimplemented from plQtPropertyContainerWidget.

◆ SetSelection()

void plQtExposedParametersPropertyWidget::SetSelection ( const plHybridArray< plPropertySelection, 8 > & items)
overridevirtual

This is called whenever the selection in the editor changes and thus the widget may need to display a different value.

If the array holds more than one element, the user selected multiple objects. In this case, the code should check whether the values differ across the selected objects and if so, the widget should display "multiple values".

Reimplemented from plQtPropertyContainerWidget.

◆ UpdateElement()

void plQtExposedParametersPropertyWidget::UpdateElement ( plUInt32 index)
overrideprotectedvirtual

Reimplemented from plQtPropertyStandardTypeContainerWidget.

◆ UpdatePropertyMetaState()

void plQtExposedParametersPropertyWidget::UpdatePropertyMetaState ( )
overrideprotectedvirtual

Reimplemented from plQtPropertyContainerWidget.

The documentation for this class was generated from the following files:
